The intelligent visual diamond stone bonding machine seamlessly integrates glue dispensing and stone placement processes. It features a high-precision spray valve that rapidly and accurately fills glue into stone holes, ensuring consistent application.
Equipped with six automated nozzles, the machine efficiently picks up diamond stones from the plate and precisely places them into designated holes. Utilizing advanced visual positioning technology, it accurately identifies both the position of the stones and the layout of items such as necklaces on the worktable.
The system is user-friendly, with simple programming and intuitive operation, making it ideal for high-efficiency production in the fashion jewelry industry. Perfect for setting crystal diamond stones on necklaces, pendants, earrings, rings, metal tags, brooches, branded fashion accessories, and keychains.

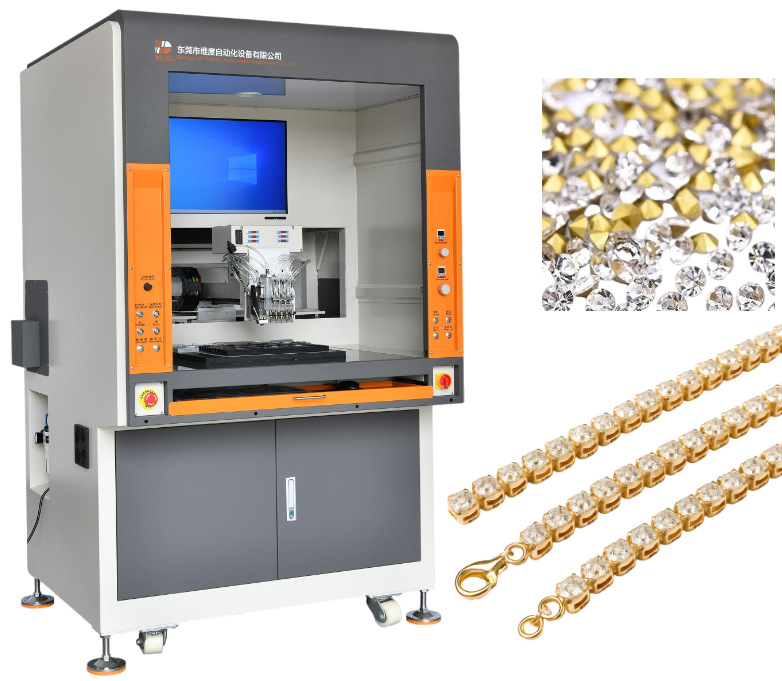

Automatic Diamond Setting Machine with Visual Positioning for Tennis Bracelets and Fashion Jewelry
The intelligent visual diamond stone bonding machine seamlessly integrates glue dispensing and stone placement processes. It features a high-precision spray valve that rapidly and accurately fills glue into stone holes, ensuring consistent application.
Equipped with six automated nozzles, the machine efficiently picks up diamond stones from the plate and precisely places them into designated holes. Utilizing advanced visual positioning technology, it accurately identifies both the position of the stones and the layout of items such as necklaces on the worktable.
Technical Parameter
Model
WD600-VD
Running Distance
X : 600mm, Y : 480mm , Z : 50mm
Worktable Max Size (mm)
500*400
Precision Nozzle Quantity (Set)
1 Set Gluing Spray Nozzle
Eject Precision
0.001ml
Repeat Accuarcy (mm)
+/-0.015mm
Camera Position Accuracy (mm)
+/-0.02mm
Camera Resolution ( px )
2 Million
Working Speed
60m/min
Power
220V , 3KW , 50/60 Hz
Transmission
Screw Balling and H level Screw Balling
Motor
FUJI SERVO MOTOR
Penumatic Components
TAI WAN AIR TAK / JAPEN SMC / GERMANY FESTO
Machine Size (cm)
134(L)*133(W)*205(H)
Machine Weight （kgs））
820
Why Choose Intelligent Visual Diamond Stone Bonding Machine
Weldo, as a global leader in the development and manufacturing of intelligent visual diamond stone bonding machine, integrates advanced AI technology—the "brains and eyes"—into our Jewelry diamond setting robot. This ensures intelligent visual recognition and precision stone bonding, setting a new standard in the jewelry manufacturing industry.
Strong R & D Team
Led by our boss Doctor Lee , our R&D continuously drives innovation , keeping our machine technology ahead of the competition.
Standardized Manufacturing
Our standardized manufacturing process follows the ISO 9001 quality system , ensuring high quality and Jewelry diamond setting robot.
International Technical Support
From pre-sales consultation to post-sales service , our technical supports ensures reliability and boosts customer trust in selecting our Jewelry diamond setting robot .
Key Specification of Intelligent Visual Diamond Stone Bonding Machine

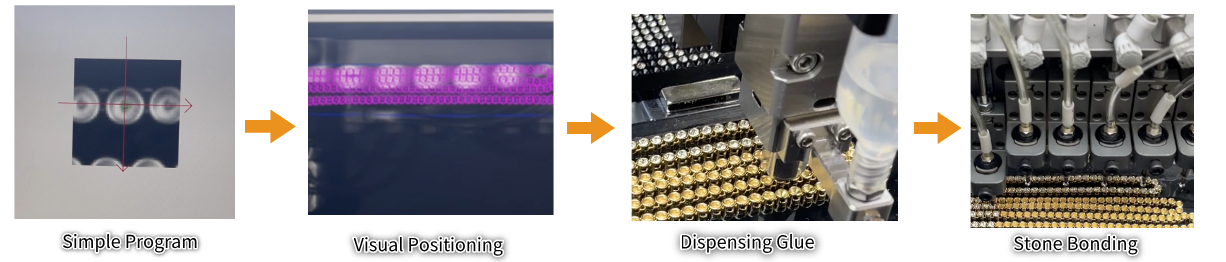

Integrated Design for Precision & Efficiency
The machine is composed of two main parts:
Visual Positioning System – to recognize and align stones and workpieces.
Gluing & Stone Placement System – to dispense glue and accurately pick and place stones with rotary nozzles.
This seamless integration allows the system to operate with exceptional speed, stability, and precision, making it an essential tool for modern jewelry manufacturers.
Automatic Diamond Stone Setting Machine Spray Valve Cleaning Process
