The 3D Jewelry Wax Stone Setting Machine offers high precision and user-friendly operation, specifically designed for inlaying Moissanite or Synthetic Cubic Zirconia (CZ) into wax molds. Ideal for producing trendy jewelry such as hip-hop style rings, this machine ensures efficient and accurate stone setting. Perfect for crafting detailed 925 Sterling Silver gemstone rings, it enhances both productivity and design quality in modern jewelry manufacturing.
Operation Procedures of 3D Jewelry Wax Stone Setting Machine
| Step 1 | Step 2 | Step 3 | Step 4 |
Make Silicon Jig | 3D Scanning | Make Stone Placement | Start |
CLICK HERE TO GET A QUICK QUOTATION
Technical Parameter
| Model | WD360-WAX |
| Running Distance | X: 370 , Y1 : 300 , Y 2: 300 , Z : 55, A : - 90~+90 Degree , B : 0~240 Degree |
| Stone Plate Worktable Size (mm) | 250*350 |
| Wax Mold Worktable Max Size (mm) | 8*8 |
| Stone Nozzle Quantity (pcs) | 4 |
| Accuarcy (mm) | +/- 0.05 |
| Inlaid Speed | Flat Wax Mold : 5 Stones / Second ; 3D Wax Mold : 3 Stones / Second |
| Power | 220V , 1.5KW , 50/60 Hz |
| Transmission | Screw Balling and H level Screw Balling |
| Motor | 4 AC Servo Motor and 5 Servo Motor |
| Machine Size (mm) | 680* 750 * 123 |
| Machine Weight （kgs）） | 250 |
Why Choose 3D Jewelry Wax Stone Setting Machine
Weldo as the leader development and manufacturers for 3D jewelry wax stone setting machine in wordwide , we implants brains and eyes into our jewelry diamond setting robot .
| Strong R & D Team |
Led by our boss Doctor Lee , our R&D continuously drives innovation , keeping our machine technology ahead of the competition. | |
| Standardized Manufacturing |
Our standardized manufacturing process follows the ISO 9001 quality system , ensuring high quality and precision Jewelry Wax Stone Setting Machine | |
 | International Technical Support |
From pre-sales consultation to post-sales service , our technical supports ensures reliability and boosts customer trust in selecting our 3D jewelry wax stone setting machine |
Key Specification of 3D Jewelry Wax Stone Setting Machine
|
Chapter 1 Intelligent Data Acquisition System Of 3D Jewelry Wax Stone Setting Machine
|
|
|
|
|
|
|
|
2K Laser Scanning : By emitting sub-millimeter-level blue laser and utilizing the principle of laser triangulation, the system leverages built-in high-precision 3D algorithms to output high-frame-rate point cloud data, depth maps, and intensity images in real time with sub-micron accuracy.
3D Stone Software : By integrating point cloud data from intensity and depth maps of varying brightness, a 3D laser point cloud image is generated. Built-in geometric algorithms and deep learning capabilities assist operators in accurately positioning the diamond.
Up Camera : The upward-facing camera is used to automatically detect the position of the nozzles, eliminating the need for manual visual inspection of nozzle alignment on the wax mold. The detection images are tracked and displayed in real time on the computer for accurate monitoring.
Down Camera : The downward-facing camera is designed to accurately set the stone nozzle’s picking position, eliminating the need for manual visual alignment with the stone holes on the tray. The nozzle’s zero-point calibration and positioning can be fully tracked and monitored through the computer software via real-time camera imaging.

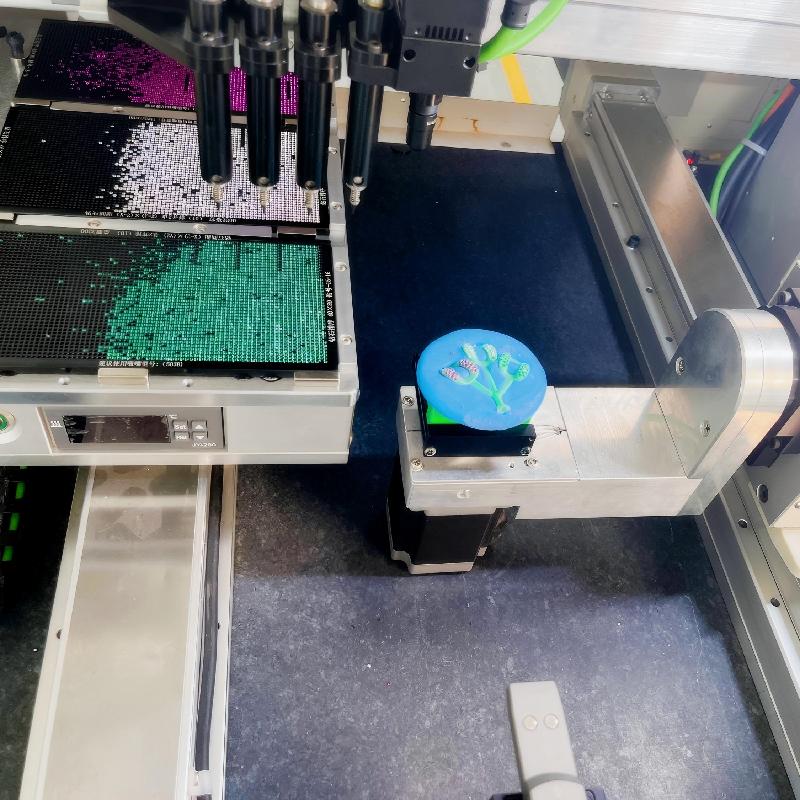

Chapter 2 : Wax Stone Inlay System Of 3D JEWELRY WAX STONE SETTING MACHINE
| | |
|
|
|
|  |  |
|
|
|
| |
| |
| |
| |
| |
|

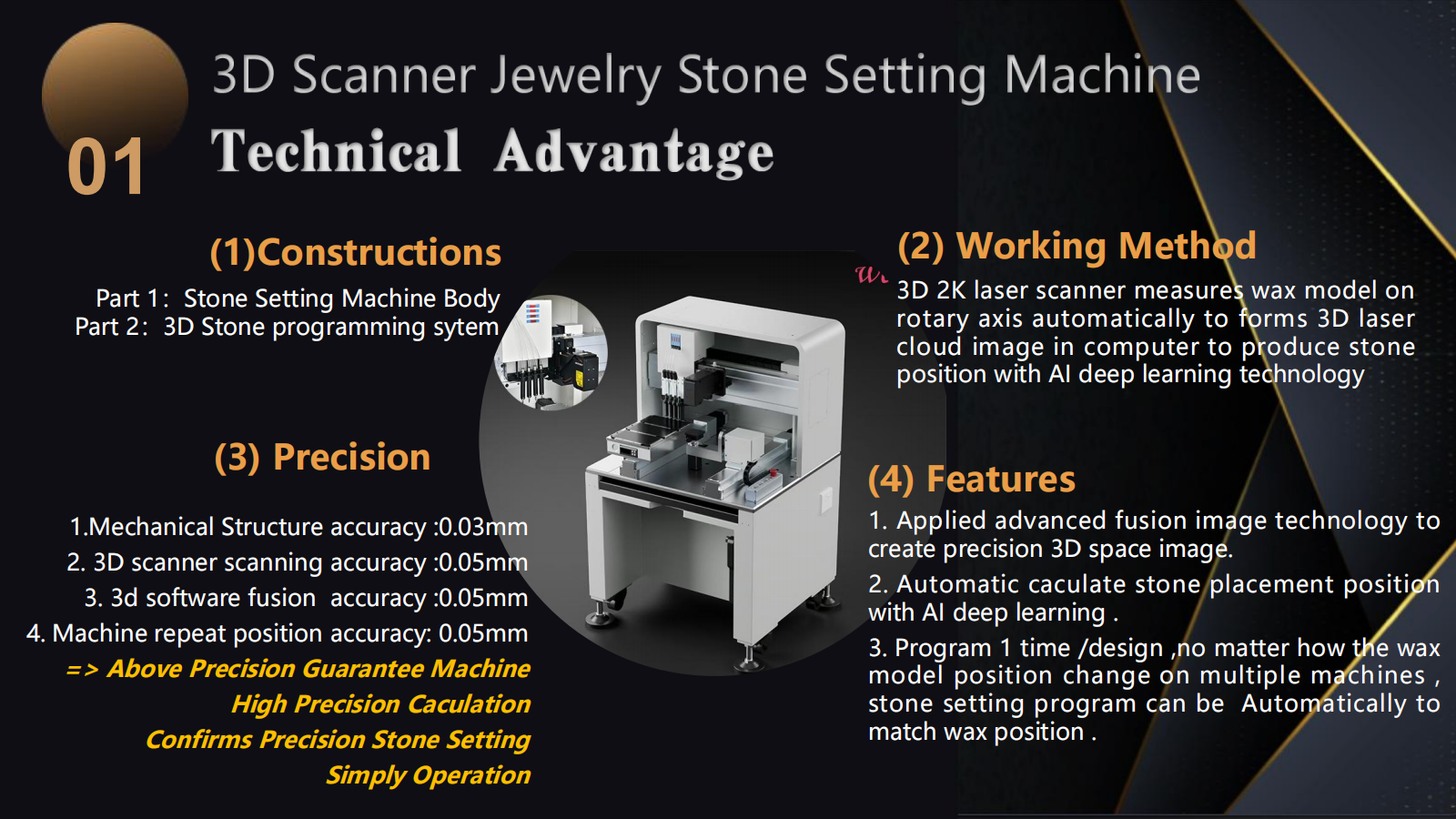

3D Jewelry Wax Stone Setting Machine Technical Advantage
3D Jewelry Wax Stone Setting Machine Benifits
Weldo 3D Jewelry Wax Stone Setting Machine is changing the jewelry industries for wax stone setting .
Invisible to Visible
One 3D Scanner creates several of accurate wax images to computer simultaneously
* Applied high precision and resolution laser camera’s multi frame algorithm fusion technology , real time output high precision 3D laser point cloud image .
*Scanning speed achieves 19 Khz ,it means one wax mold scanning time 1 mins
Impossible to Possible
Off-line Stone Setting Program For Wax Image In Office
*Image can be zoomed in and out , even flipped at will
*Applied AI software , stone position can be automatically produced precisely
*Stone program with the same degree of accuracy can be shared from mother machine to son machines
Hand Setting to Auto Setting
Stone program downloaded to machine directly , no more eys strain hand-box adjustment
*Freed up many impossible designs and allows to create many difficult setting project .
*Removed the high stone setting fees of some setting projects.
FAQ Of 3D Jewelry Wax Stone Setting Machine Benifits
1. Q:1. Suppose I now have 10,000 jewelry wax models taken from different silicone molds. Can your 3D scanning wax model robot complete this task?
A:Sure,we can.
2. Q :If there are wax residues inside the jewelry wax mold, will the machine cause uneven stone setting?
A:Yes, wax residue can clog the drill, causing the stone to shift out of alignment.
3. Q:How long does it take to program your machines?
A:The time of programming is determined by the difficulty of the model. For example, if the model requires a large number of diamonds to be set, the programming difficulty is high, and the corresponding time is also longer.
4. Q:How fast is your machine's stone setting speed?
A:Our machine can embed 4-6 stones per second.
5. Q: Is your 3D scanning camera easy to use?
A:Yes
6. Q:Can your machine set six different types of stones at the same time?
A:Yes,up to 6 type
7. Q:Can your machine set six different types of colour at the same time?
A:Yes
8. Q:What kind of stones can your machine set?
A:It can set the heat-resistant stone.

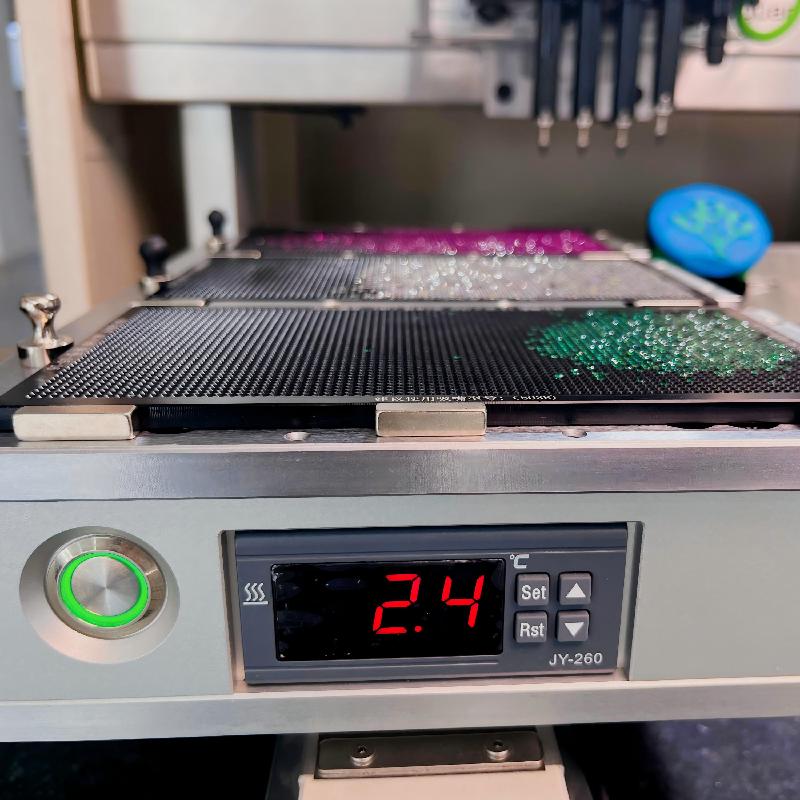

9. Q:Does your machine have a constant temperature heating system?
A:Yes, in order to extend the dispensing time of the spray valve, the spray valve is equipped with a constant temperature heating system.
10. Q:Does your machine have high reset accuracy for the A/C axis?
A:Yes, our machines use high-precision servo motors with an accuracy of 0.01-0.02 mm.
11. Q:Do you charge extra for your machine's data collection system?
A:No ,the machine's data collection system is for free.
12. Q:Can your software be saved on a computer?
A:Yes,the software can be saved on computer
13. Q:Can the completed stone setting program be shared among several machines?
A：Yes
14. Q:How do your computers, cameras, and machines communicate with each other?
A:It is connected via a network cable.

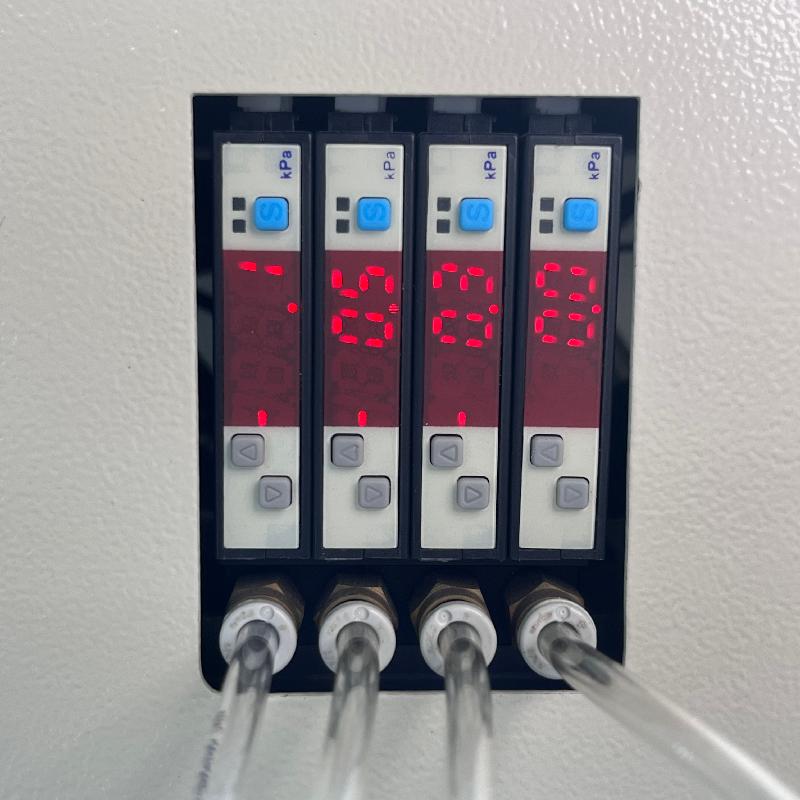

15. Q:Does your machine's suction nozzle have intelligent vacuum detection?
A:Yes, the vacuum generator is equipped with intelligent vacuum detection.
16. Q:Can your stone setting software match design drawings?
A:Yes
17. Q:What kind of design formats can your stone setting software match?
A:For example like Blender, Rhinoceros 3D ,RhinoGold,Fusion 360, AutoCAD, CounterSketch, 3Design, ZBrush, FreeCAD, SOLIDWORKS, Gemvision Matrix, JewelCAD, Tinkercad, SketchUp, Adobe Illustrator, Mudbox, WizeGem
18. Q:Can ordinary employees control your software and machines?
A:Sure, and if you know a bit about computers, you'll learn faster.
19. Q:What type of motor drive does your machine's A/C axis use, and does the motor have a long service life?
A:Our machines use servo motors, which have a long service life.
20. Q:What sizes of diamonds can your machine set?
A：From the smallest size0.8mm to the largest size 3.0
21. Q:What kind of stone setting equipment is the 3D jewelry Wax Stone Setting Machine
A:1.Easy to control and requires low technical skills from employees.
2. The machine uses high-quality parts can run well for a long time.
3. Our machine achieves high speeds and efficiency.
22. Q: What are the characteristics of the 3D jewelry Wax Stone Setting Machine
A ：1.The 3D camera can scan automatically , make the stone setting path datadigitizing and visualizing
2. Our machines use servo motors, which have a long service life.
3. Easy to control and requires low technical skills from employees.
23. Q:Compare with the traditinal stones setting robots,what are the advantages of the 3D jewelry Wax Stone Setting Machine
A:1.Replacing the naked eye with a 3D camera requires low technical skills from employees.
2.Our machines use servo motors, ensures high reset accuracy.
24. Q:How does the Dimension 3D Stereoscopic Wax Inlay Robot Laser Profile Scanner work?
A:Using oblique laser scanning, the required information is collected and the data is returned to the computer.
25. Q: Is the Dimension 3D Stereoscopic Wax Inlay Robot Laser Contour Scanner easy to operate?
A:Yes, and if you know a bit about computers, you'll learn faster.
26. Q:Does your 3D jewelry wax stone setting machine have any parts that are easy to break?
A:You can click the link and find the parts that prone to wear and tear.
27. Q:If we purchase your 3D jewelry Wax Stone Setting Machine can your technicians come to our country to teach our workers how to use the machine?
A:We can provide on-site service in your country, but your company will need to pay for travel expenses and engineer wages.
28. Q:If there is a problem with the machine and we cannot fix it, and you are far away from us, what should we do?
A：1. We will send experienced engineers to provide remote guidance via video.
2. For program issues, we can remotely control the machine using its camera to resolve the problem.
3D Jewelry Wax Stone Setting Machine Application

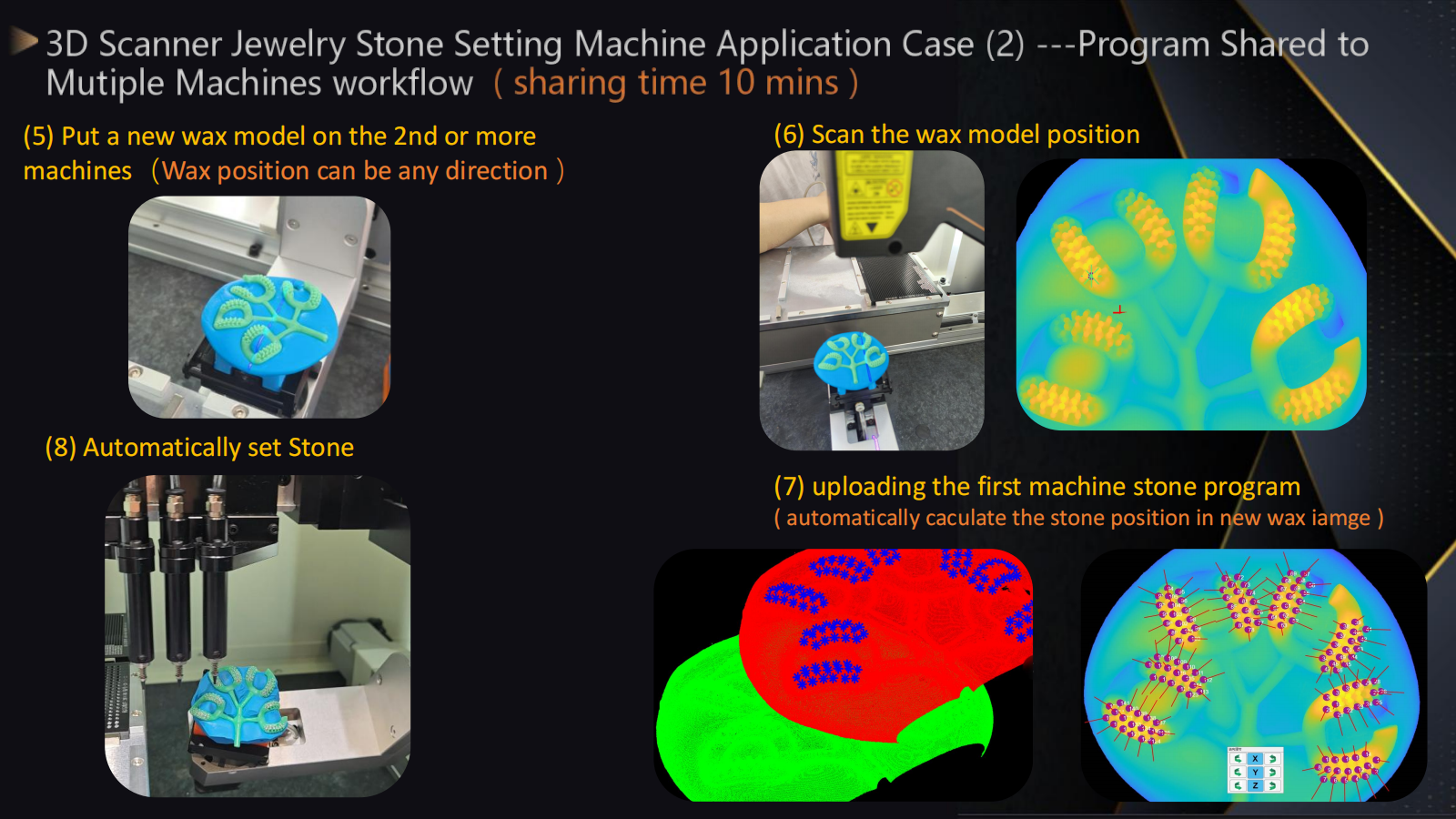

2. How to Share Stone Setting Program to Mutiple Machines workflow

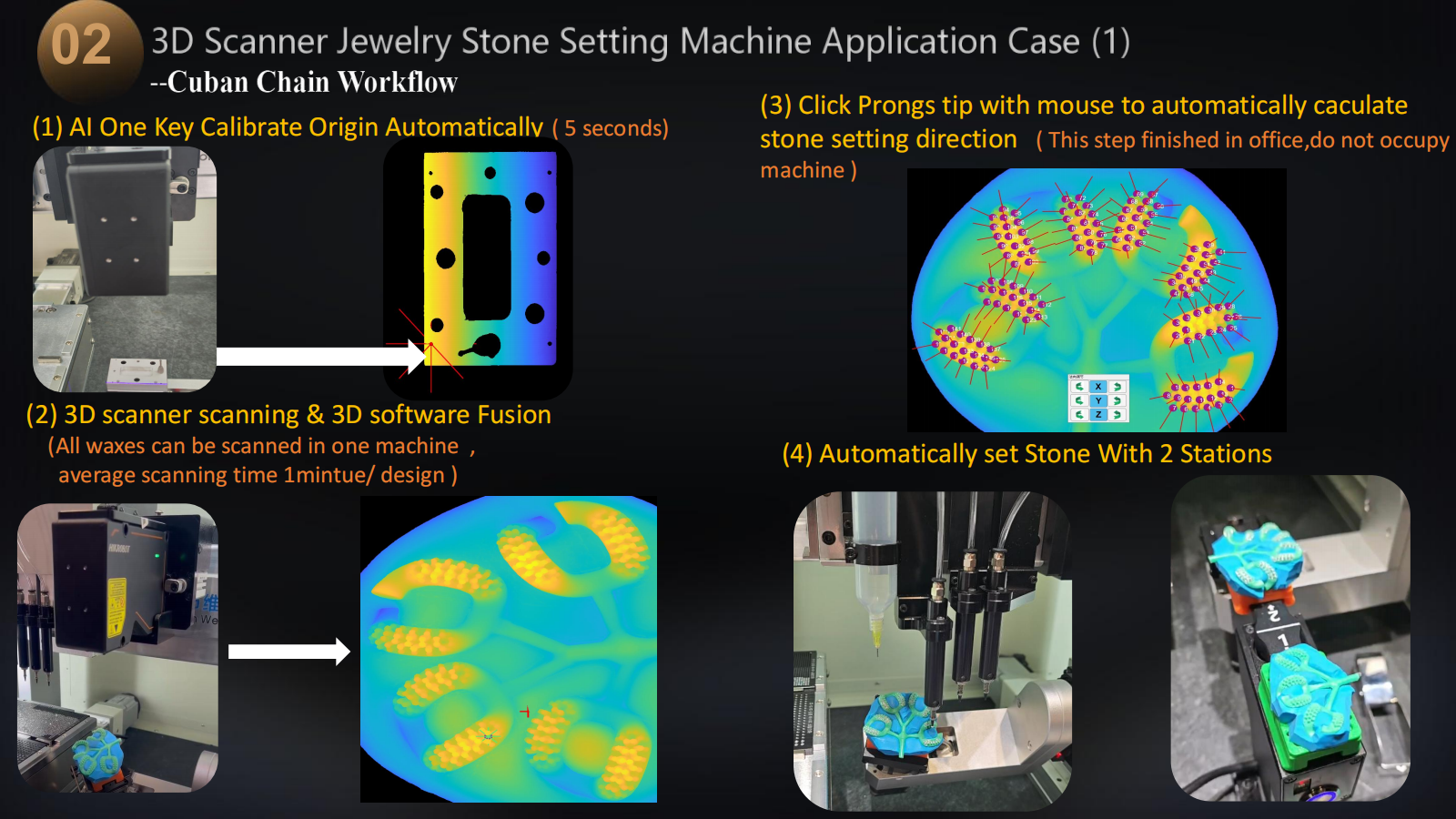

3. How to Make Stone Setting Program for Cuban Chain Workflow
