The 2D Camera Positioning Automatic Shape Stone Setting Machine is engineered to efficiently fill glue and bond various crystal-shaped diamond stones. Equipped with a high-resolution CCD camera, it accurately identifies the positions of both stones and products on the worktable. Its high-precision spray valve rapidly dispenses glue into the stone holes, while four rotary stone nozzles precisely pick and place the stones into position. This jewelry diamond setting robot is ideal for setting crystal diamond stones on silver jewelry, imitation jewelry, high-end fashion accessories, as well as gifts and handicrafts.
High Performance 2D Camera Positioning Automatic Shape Stone Setting Machine To Bond Crystal Drop /Oval Diamond For Silver Jewelry Dragonfly Brooches
The 2D Camera Positioning Automatic Shape Stone Setting Machine is designed to fill glue and bond various crystal-shaped diamond stones. It utilizes a high-resolution CCD camera to accurately recognize the positions of both the stones and the product on the worktable. A high-precision spray valve quickly dispenses glue into the stone holes, while four rotary stone nozzles pick and place the crystal stones with high efficiency and precision.
Technical Parameter
Model
WD600-VDS
Running Distance
X : 600mm, Y : 480mm , Z : 50mm
Worktable Max Size (mm)
500*400
Precision Nozzle Quantity (Set)
1 Set Gluing Spray Nozzle
Eject Precision
0.001ml
Repeat Accuarcy (mm)
+/-0.015mm
Camera Position Accuracy (mm)
+/-0.02mm
Camera Resolution ( px )
2 Million
Working Speed
60m/min
Power
220V , 3KW , 50/60 Hz
Transmission
Screw Balling and H level Screw Balling
Motor
FUJI SERVO MOTOR
Penumatic Components
TAI WAN AIR TAK / JAPEN SMC / GERMANY FESTO
Machine Size (cm)
134(L)*133(W)*205(H)
Machine Weight （kgs））
820
Why Choose 2D Camera Positioning Automatic Shape Stone Setting Machine
Weldo, as a global leader in the development and manufacturing of 2D Camera Positioning Automatic Shape Stone Setting Machine, integrates advanced AI technology—the "brains and eyes"—into our Jewelry diamond setting robot. This ensures intelligent visual recognition and precision stone bonding, setting a new standard in the jewelry manufacturing industry.
Strong R & D Team
Led by our boss Doctor Lee , our R&D continuously drives innovation , keeping our machine technology ahead of the competition.
Standardized Manufacturing
Our standardized manufacturing process follows the ISO 9001 quality system , ensuring high quality and Jewelry diamond setting robot.
International Technical Support
From pre-sales consultation to post-sales service , our technical supports ensures reliability and boosts customer trust in selecting our Jewelry diamond setting robot .

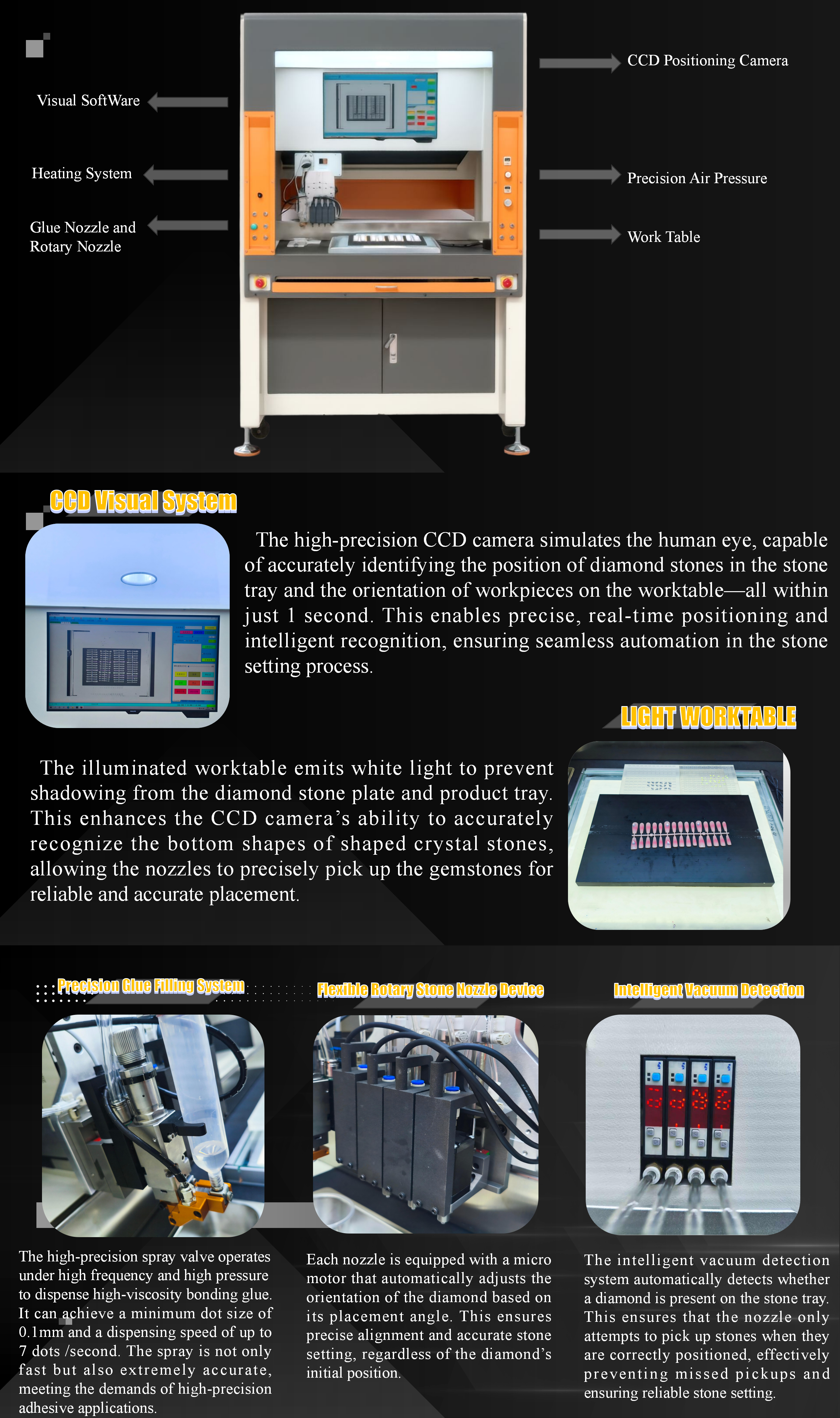

Key Specification of 2D Camera Positioning Automatic Shape Stone Setting Machine
Integrated Design for Precision & Efficiency
The machine is composed of two main parts:
Visual Positioning System – to recognize and align stones and workpieces.
Gluing & Stone Placement System – to dispense glue and accurately pick and place stones with rotary nozzles.
This seamless integration allows the system to operate with exceptional speed, stability, and precision, making it an essential tool for modern jewelry manufacturers.
2D Camera Automatic Shape Stone Setting Machine Spray Valve Cleaning Process
